DC Output |
24VDC |
| Max. DC output voltage | 33.6V |
| Max. DC output cuttent | 5A |
| Max. DC output power | 150W |
|
Deep discharge recovery (minimum voltage) |
10V |
| Max. C3 interlock current | 5A |
| Battery type | Lead acid (wet / AGM / gel), lithium |
| Reverse polarity | Electronic protection with auto-reset |
| Short circuit | Electronic current limit |
| AC Input | ||
| Nominal AC input voltage | 100-240VAC ±10% | |
| Nominal AC input frequency | 50 / 60Hz | |
| Maximum AC input current | 1.8A | |
| Nominal AC input current | 1.5A @ 120VAC | 0.7A @ 230VAC |
| Power factor | >0.99 @ 120VAC | >0.98 @ 230VAC |
| Regulatory | |
| Effciency |
88% at full load, 120 VAC, 24 VDC | 92% at full load, 230 VAC, 24 VDC California Energy Commission (CEC) compliant |
| Safety (LVD) |
IEC 60335-1:2010; IEC 60335-1:2010/AMD1:2013; IEC 60335-1:2010/AMD2:2016 BS EN 60335-2-29:2004 + A11:2018; BS EN 60335-1:2012 + A11:2014 + A2:2019 |
| Emissions (EMC) |
EN IEC 55014-1:2021; EN IEC 61000-3-2:2019+A1:2021 BS EN 55014-1:2017+A11:2020; BS EN IEC 61000-3-2:2019 |
| Immunity (EMC) |
EN IEC 55014-2:2021; EN 61000-3-3:2013+A2:2021 BS EN 55014-2:2015; BS EN 61000-3-3:2013+A1:2019 |
| Mechanical | |

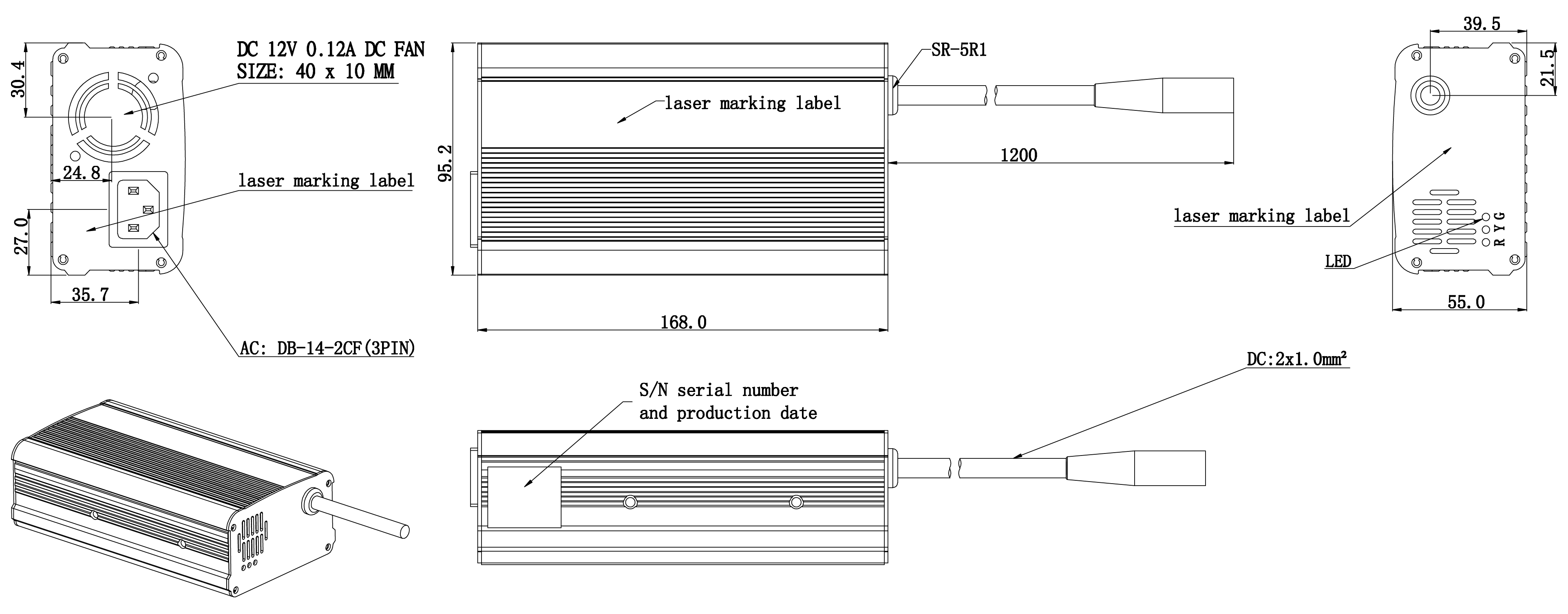

| Dimensions | L168 x W95.2 x H55 mm |
| Weight | 1 kg |

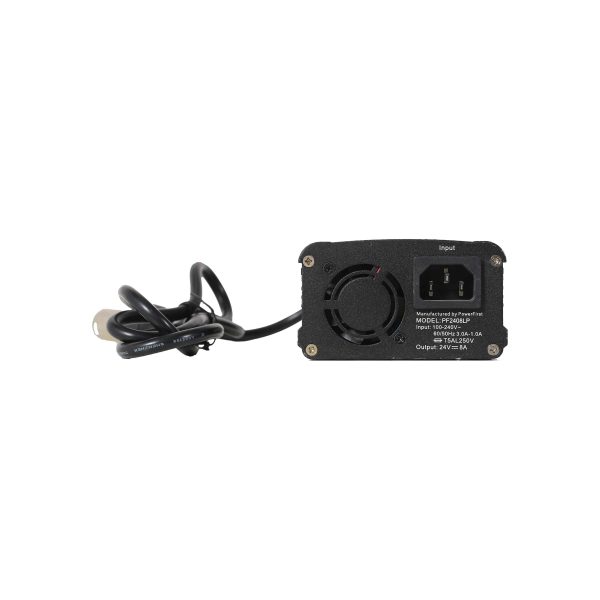

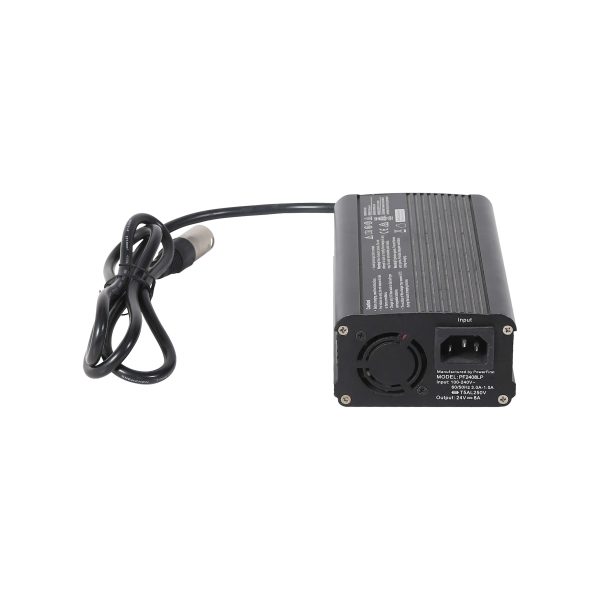

| AC input connector | IEC320 / C14 (requires country-specifc cord) |
| DC output connector | Customizable |
| Inhibit function | ON / DC |
| Cooling |
Active cooling with fan (Variable speed) |
| Environmental | ||
| Enclosure | IP21 | |
| Operating temperature | -20°C to +45°C | Derated at >45°C |
| Storage temperature | -40°C to +60°C | |
