Alpha 600W

Alpha 600W

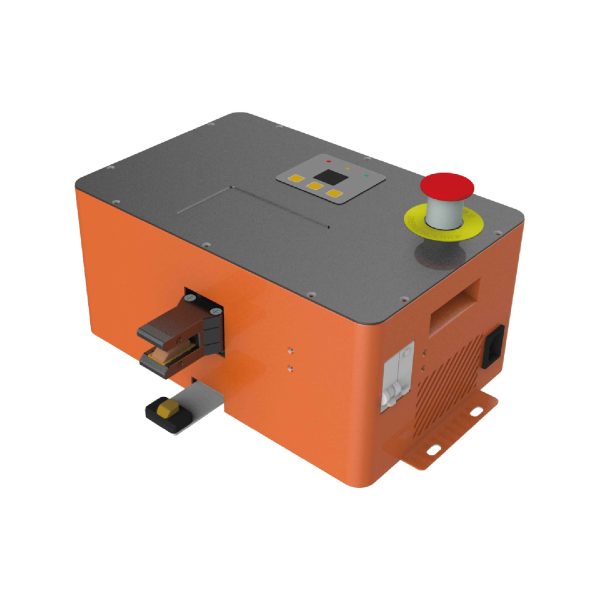

Alpha 600 is a compact charging pile with LCM showing charging voltage and current, and with keys to select charging profiles. lt’s widely used in AGV/ AMR industry. Wifi communication is optional for advanced setting, data-report, GPS and diagnostic.

Highlighted Features:

  • Optional CAN bus, RS485, I2C, Wi-Fi, Bluetooth communication for machine integration or lithiumBMS.
  • User friendly LED indicators for AC source, batterystatus, charging, error.
  • Field programmable with up to 30 charge profiles.
  • Auto-recharge for low voltage in maintenance mode.
  • OEM customizable & field replaceable AC / DC cabling.
  • Additional portable handle available.
    • ENQUIRY!
    SKU: 21 Category:

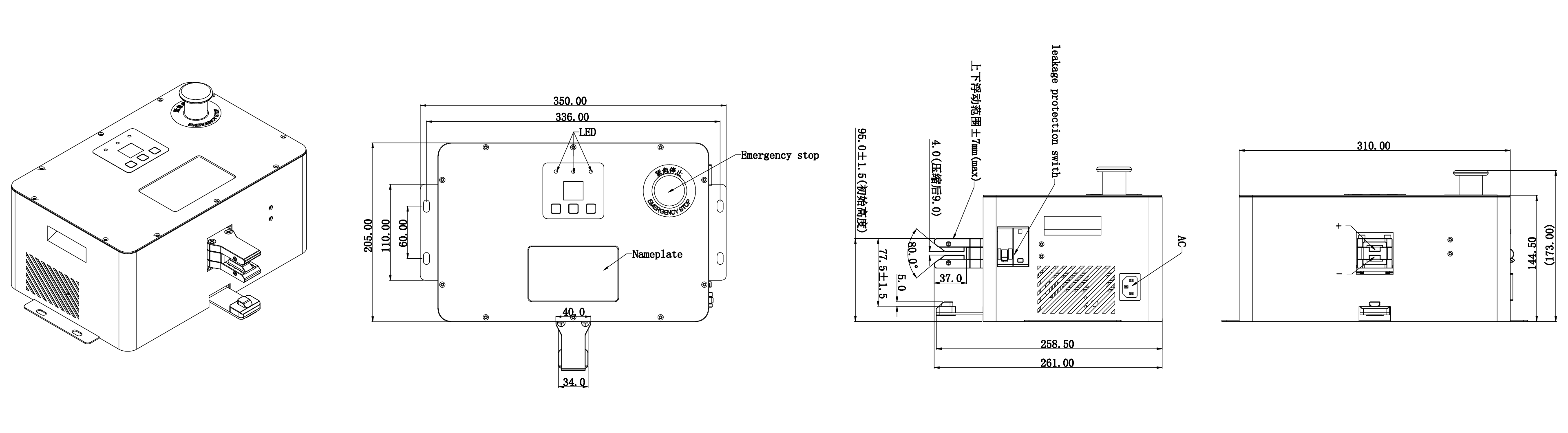

    A450-2415 2D尺寸图-01.png

    General Characteristics
    AC input voltage 90-240 VAC + / -10% 50-60Hz
    DC output voltage 29.4V 28.8V (Optional)
    DC output current 20A / 15A / 10A / 8A / 5A 20A / 15A / 10A / 8A / 5A
    Charging profile setting Select by pressing keys
    Protection Short-circuit proection, sparks protection and over temperature protection with auto-reset after condition is removed
    Efficiency >=91% under 230V ; Approx. 89% under 120V
    Operating temperature 0°C to +40°C
    Storage temperature -40°C to +85°C

    Regulations
    Certificates

    CE, UL, KC, PSE
    Safety LVD: EN61558-1 / EN61558-2-16, J 60335-1, J 60335-2-29, KC 60335-1, KC 60335-2-29
    On board / stand alone / wall EN61000-6-1 / EN61000-6-3, J 55014-1

    Mechanical Characteristics
    AC input connector IEC320 / C14 connector
    Protection degree IP 21 (vertical)
    Weight 5.5 kg
    Dimension L350 x W261 x H173 mm
