Alpha 3600W

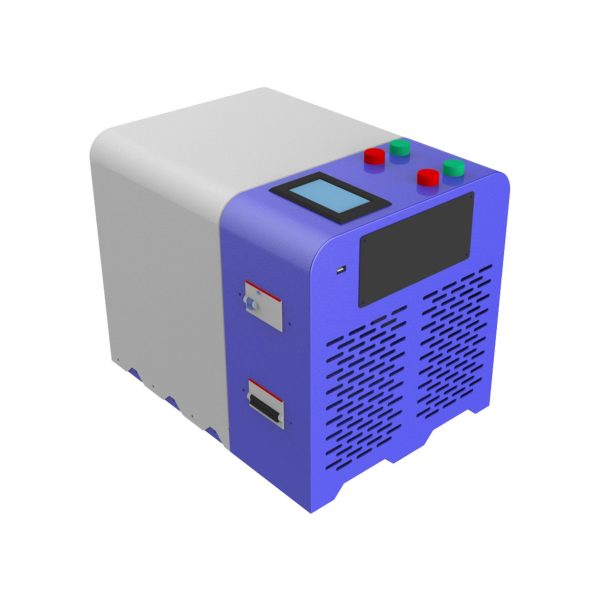

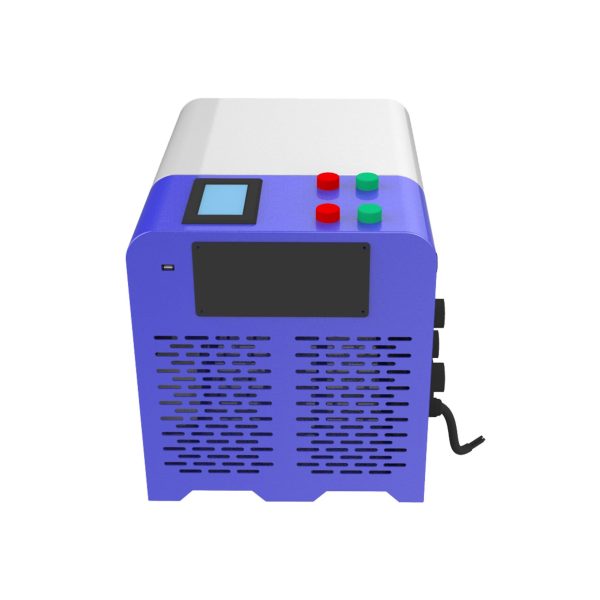

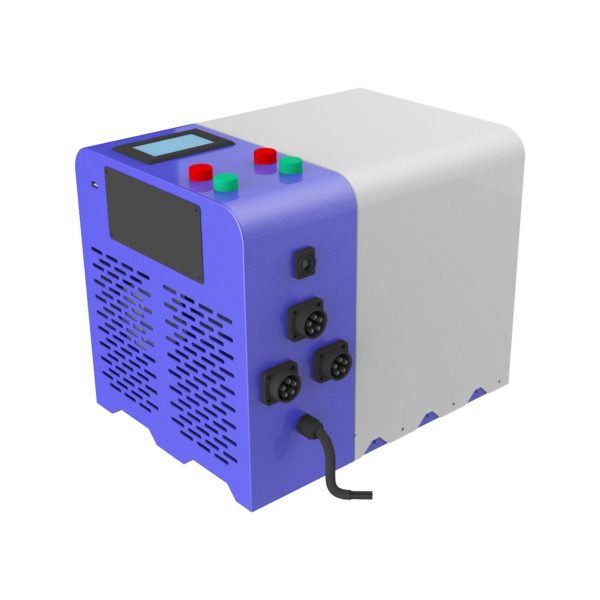

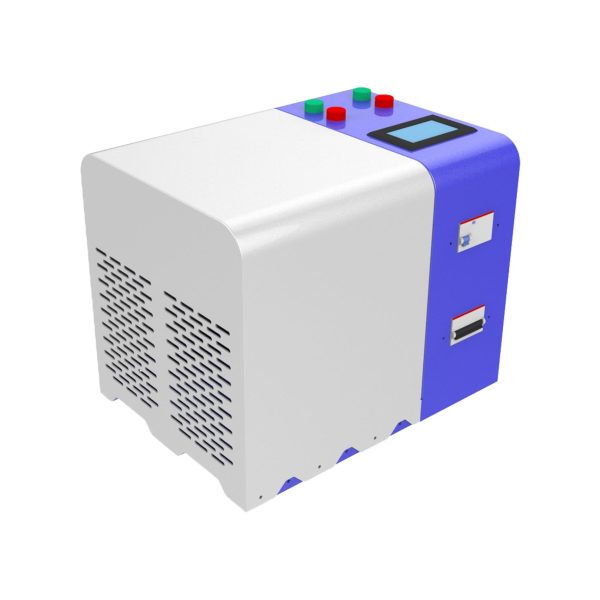

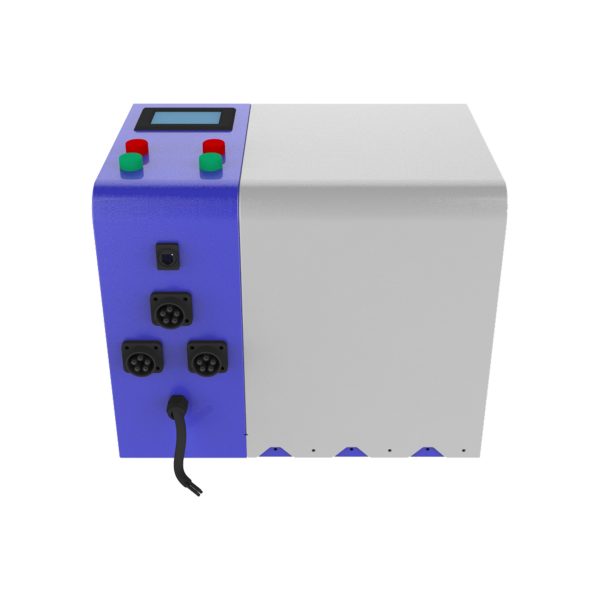

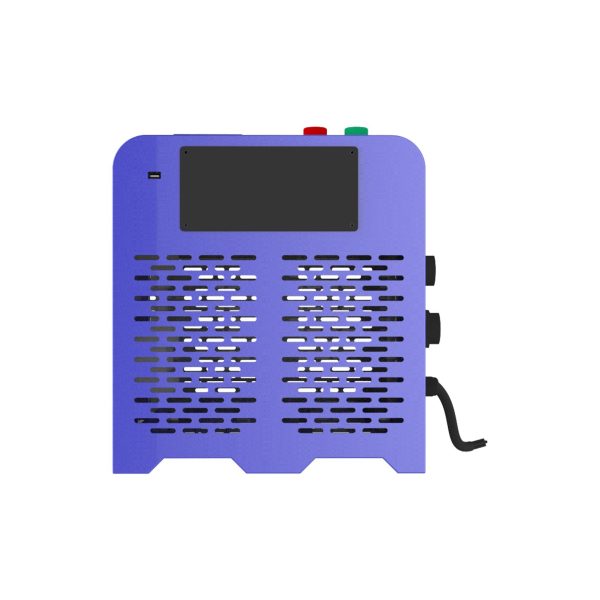

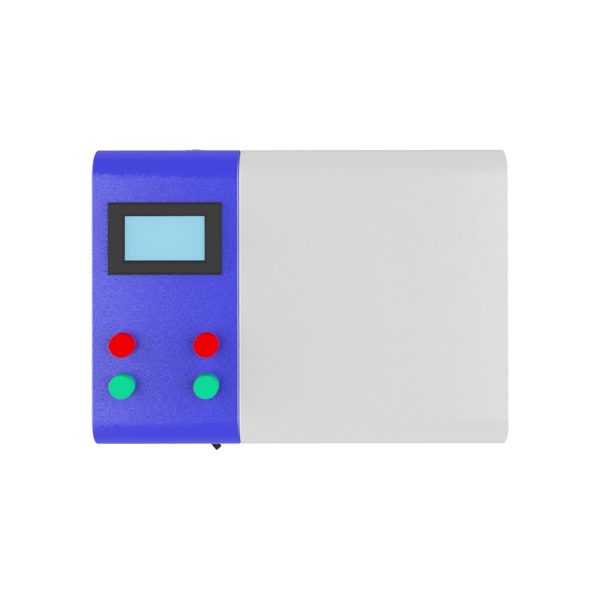

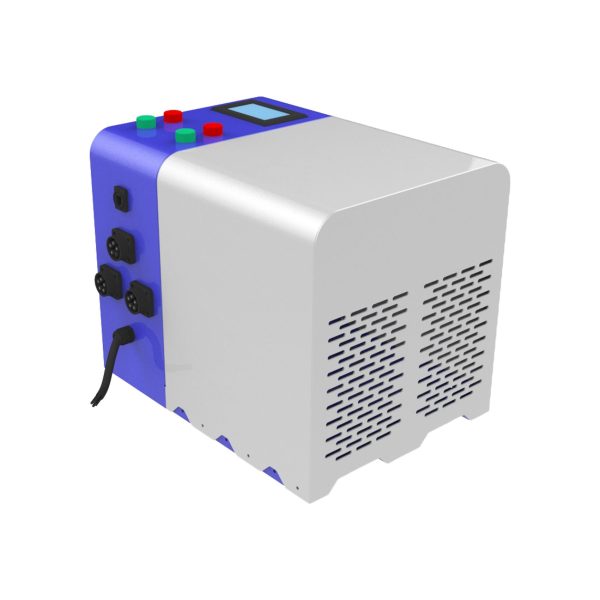

A3600 is an intellegent charging pile with touch screen, clearly showing the working status: communication, charging voltage, current, time, capacity, temperature and recycle times. Easy to set parameters. It’s widely used in AGV / AMR industry. Wifi communication is optional for advanced setting, data-report, GPS and diagnostic.



Highlighted Features:

  • Optional CAN bus, RS485, I2C, Wi-Fi, Bluetooth communication for machine integration or lithiumBMS.
  • User friendly LED indicators for AC source, batterystatus, charging, error.
  • Field programmable with up to 30 charge profiles.
  • Auto-recharge for low voltage in maintenance mode.
  • OEM customizable & field replaceable AC / DC cabling.
  • Additional portable handle available.
ENQUIRY!
SKU: 24 Category:

General Characteristics
AC input voltage 380 VAC + / -10%, 50-60Hz, 3 phases
DC output voltage 24V 48V
DC output current 100A 60A
Charging profile setting Automatic charging & Manual Charging
Protection Protection for short-circuit, sparks, over temperature, over output current , over output voltage, with auto-reset after condition is removed
Efficiency >=91% under 230V ; Approx. 89% under 120V
Operating temperature 0°C to +40°C
Storage temperature -40°C to +85°C

Regulations
Certificates

CE, UL, KC, PSE
Safety LVD: EN61558-1 / EN61558-2-16, UL1564, CSA 107.2
On board / stand alone / wall EN61000-6-1 / EN61000-6-3, J 55014-1

Mechanical Characteristics
AC input connector Cables out
Protection degree IP 21 (vertical)
Weight 42 kg
Dimension L600 x W400 x H400 mm

HQ60-2402 2D尺寸图-01.png
