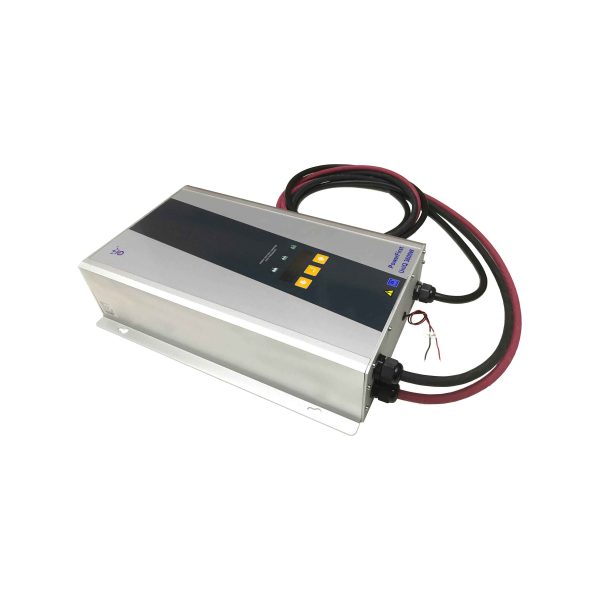

UinQ 3600W

UinQ 3600W

The UniQ 3600 serie are high frequency battery chargers features wide-range AC input adapting to any single-phase grid worldwide with a peak efficiency of 94%, low energy consumption, complying with CEC. The charger can be programmed for charging various types of battery packs. They are widely used for forklift trucks, pallet stackers, tow tractors, utility vehicles, aerial work platforms, golf carts, floor machines, etc.

Highlighted Features:

  • Optional CAN bus, RS485, I2C, Wi-Fi, Bluetooth communication for machine integration or lithiumBMS.
  • User friendly LED indicators for AC source, battery status, charging, error.
  • Field programmable with up to 30 charge profiles.
  • Auto-recharge for low voltage in maintenance mode.
  • OEM customizable & field replaceable AC / DC cabling.
  • Additional portable handle available.
    • ENQUIRY!
    SKU: 31 Category:

    DC Output

    		 24VDC 36VDC 48VDC 72VDC
    Max. DC output voltage 33V 49.5V 66V 82.5V
    Max. DC output cuttent 120A 90A 60A 45A
    Max. DC output power 3600W

    Deep discharge recovery (minimum voltage)

    		 16V 24V 32V 40V
    Max. C3 interlock current 7A
    Battery type Lead acid (wet / AGM / gel), lithium
    Reverse polarity Electronic protection with auto-reset
    Short circuit Electronic current limit

    AC Input
    AC input voltage range 85-270 VAC
    Nominal AC input voltage 100-240VAC ±10%
    Nominal AC input frequency 50 / 60Hz
    Maximum AC input current 40A
    Nominal AC input current 40A @ 100VAC 34A @ 120VAC
    18A @ 230VAC 17A @ 240VAC
    Power factor >0.99 @ 120VAC >0.98 @ 230VAC

    Regulatory
    Effciency 90% at full load, 120 VAC, 48 VDC | 92% at full load, 240 VAC, 48 VDC
    Safety (LVD) UL1564, CSA 107.2, EN 60335-2-29
    Emissions (EMC) FCC Part 15 / ICES 003 Class A, EN55011, EN 61000-6-4
    Immunity (EMC) EN 61000-3-2, EN 61000-3-3, EN 61000-6-2

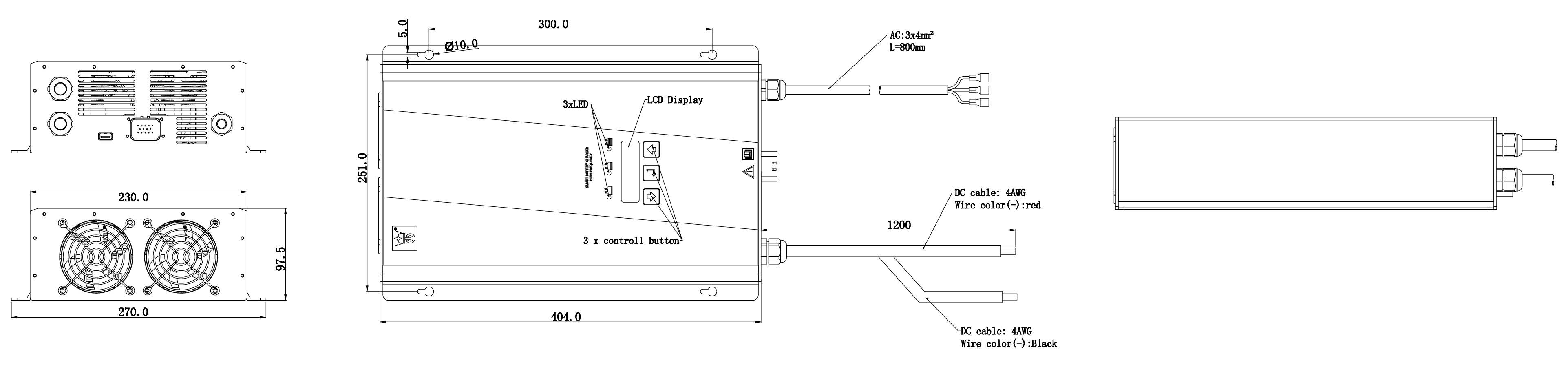

    Mechanical
    Dimensions L404 x W270 x H97.5 mm
    Weight 10 kg
    AC input connector IEC320 / C14 (requires country-specifc cord)
    DC output connector M6 threaded fasteners for ring terminals (field replaceable)
    Mounting holes 10 mm diameter slots
    Cooling

    Active cooling with fan

    (Variable speed, feld serviceable, field replaceable)

    Environmental
    Enclosure IP20
    Mechanical shock & vibration GMW3172
    Corrosion & humidity
    Thermal fatigue
    Operating temperature -20°C to +40°C Derated at >40°C
    Storage temperature -20°C to +60°C
