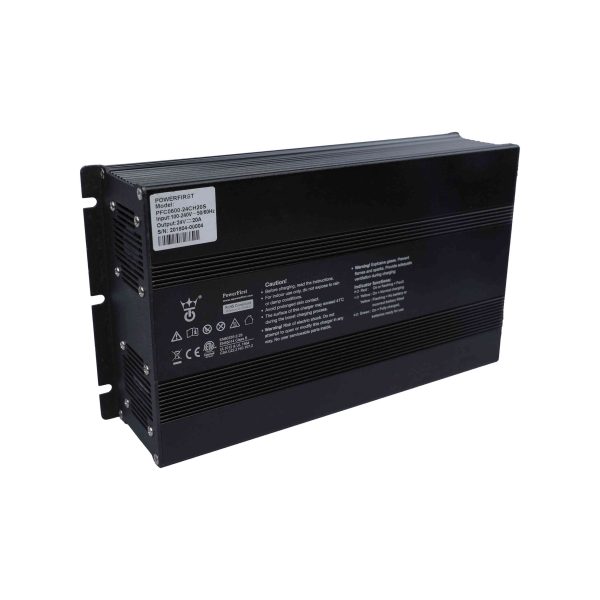

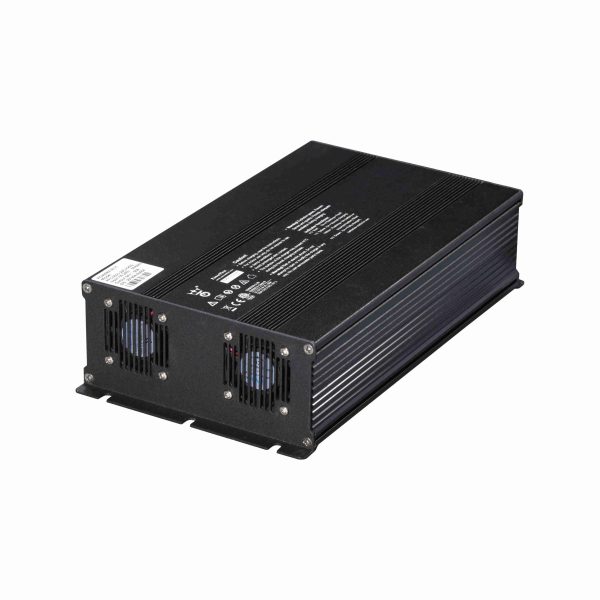

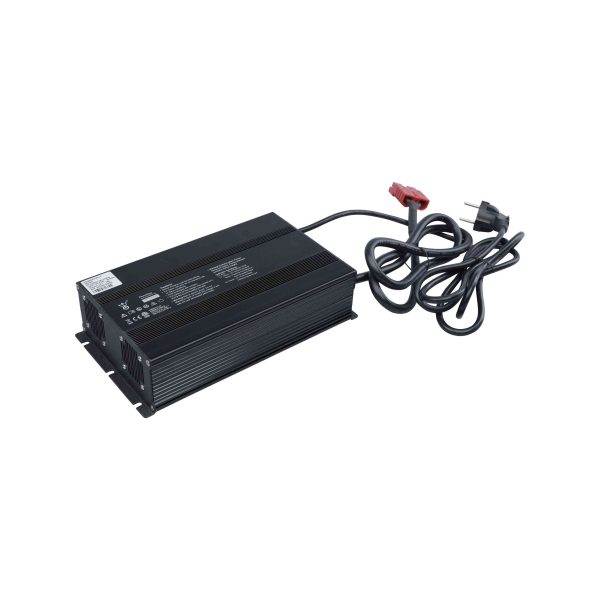

The Smart 800 serie of fan-cooled high frequency battery chargers feature wide-range AC input adapting to any single-phase grid worldwide with a peak efficiency of 92%, complying with CEC, possible to set Dip-swithches for output currents and charging profiles for various types of battery packs, widely used for floor machines, pallet stackers, golf carts, utility vehicles, tow tractors, aerial work platforms, etc.

Highlighted Features:

User friendly LED indicators for AC source, battery status, charging, error.

Auto-recharge for low voltage in maintenance mode.

OEM customizable & feld replaceable AC/DC cabling.

Additional portable handle available.

SKU: 29 Category: chargers

Description
Reviews (0)

DC Output	24VDC	36VDC	48VDC
Max. DC output voltage	33.6V	50.4V	67.2V
Max. DC output cuttent	30A	18A	13A
Max. DC output power	800W
Deep discharge recovery (minimum voltage)	16V	24V	32V
Max. C3 interlock current	7A
Battery type	Lead acid (wet / AGM / gel), lithium
Reverse polarity	Electronic protection with auto-reset
Short circuit	Electronic current limit

AC Input
AC input voltage range	85-270 VAC
Nominal AC input voltage	100-240VAC ±10%
Nominal AC input frequency	50 / 60Hz
Maximum AC input current	9.5A
Nominal AC input current	9.5A @ 100VAC	4.75A @ 240VAC
Power factor	>0.99 @ 120VAC	>0.98 @ 230VAC

Regulatory
Effciency	88% at full load, 120 VAC, 48 VDC \| 99% at full load, 240 VAC, 48 VDC
Safety (LVD)	UL1564, CSA 107.2, EN 60335-2-29
Emissions (EMC)	EN55014
Immunity (EMC)	EN 61000-3-2, EN 61000-3-3

Mechanical

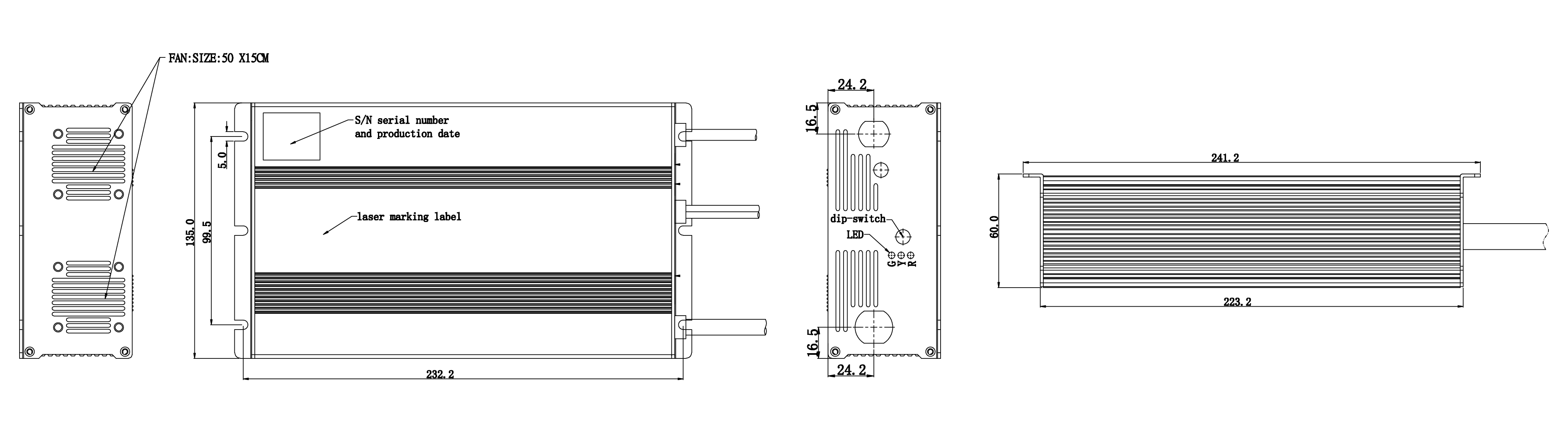

Dimensions	L241.2 x W135 x H60 mm
Weight	2.5 kg
AC input connector	IEC320 / C14 (requires country-specifc cord)
DC output connector	Customizable
Communication	CAN bus 485 (optional)
Inhibit function	ON / OC
Cooling	Active cooling with fan (Variable speed)

Environmental
Enclosure	IP21
Operating temperature	-20°C to +45°C	Derated at >45°C
Storage temperature	-40°C to +70°C
