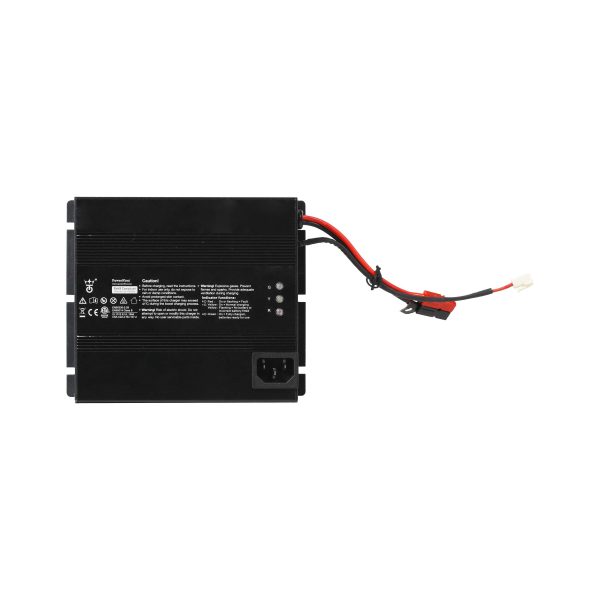

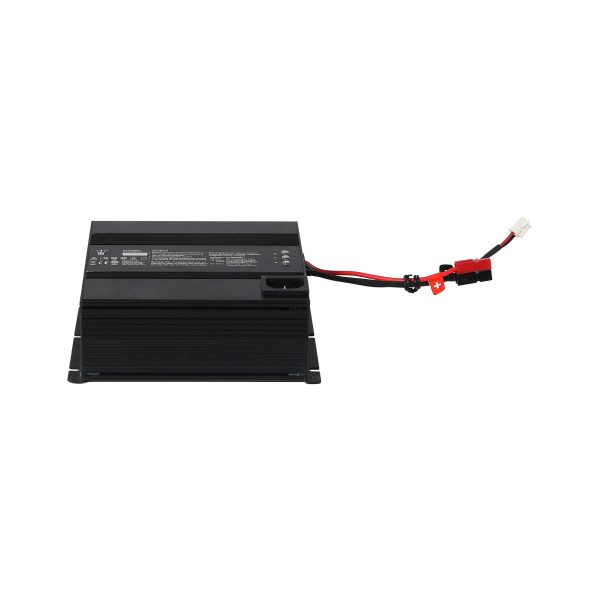

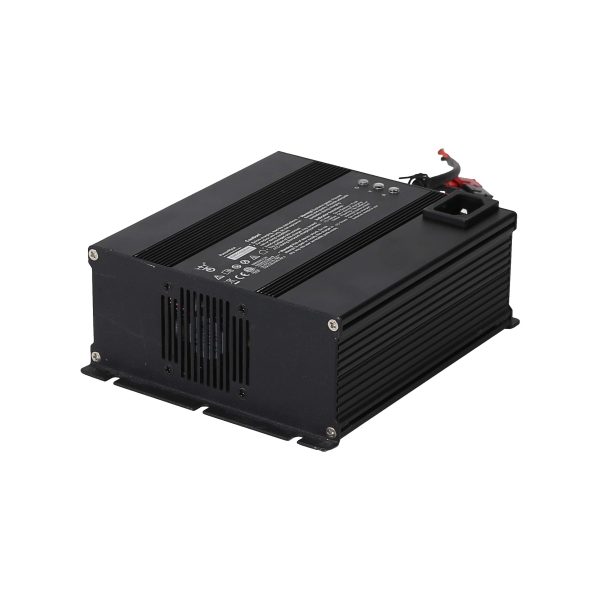

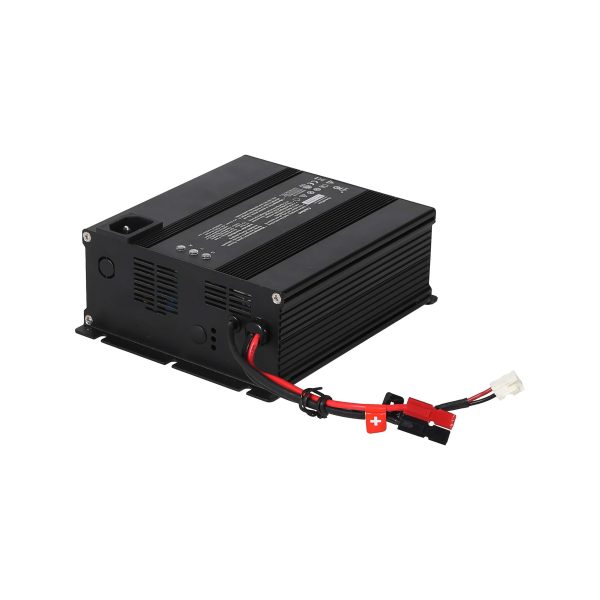

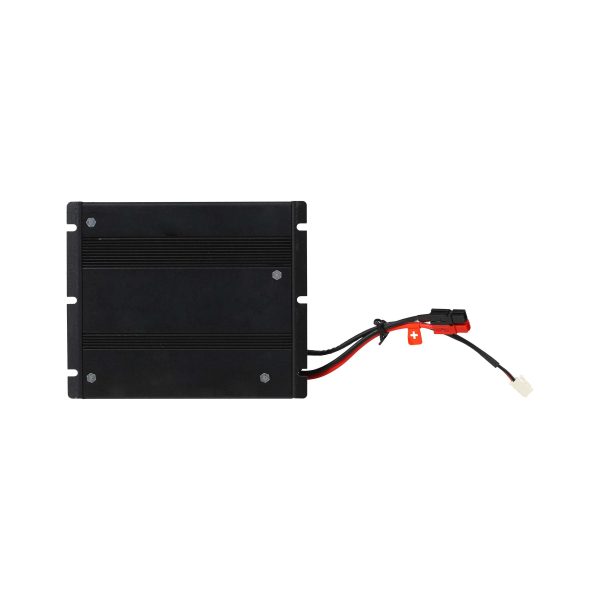

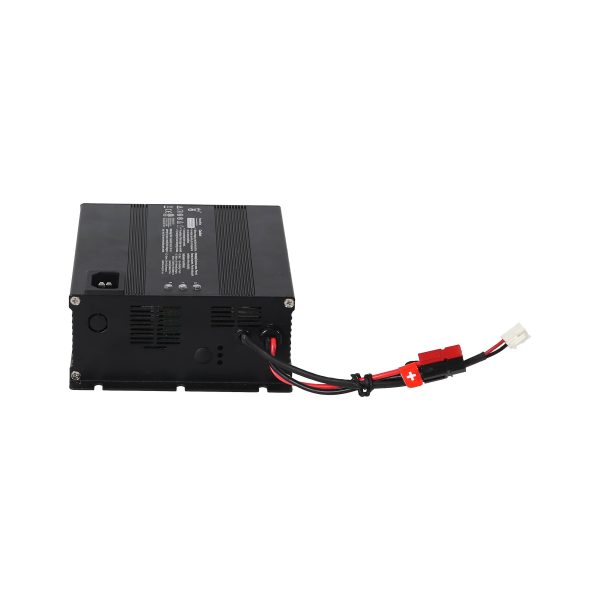

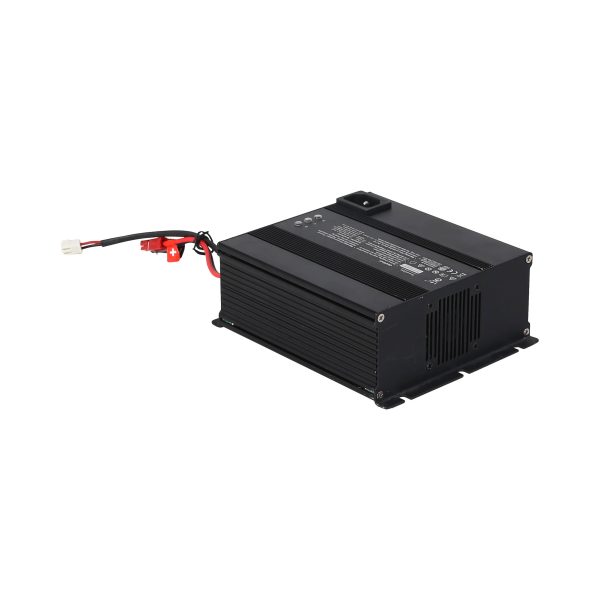

Smart 450W

The Smart 450 serie of fan-cooled high frequency battery chargers feature wide-range AC input adapting to any single-phase grid worldwide with a peak efficiency of 92%, complying with CEC, possible to set Dip-swithches for output currents and charging profiles for various types of battery packs, widely used for floor machines, pallet stackers, pallet movers, utility vehicles, tow tractors, aerial work platforms, etc.

Highlighted Features:

  • User friendly LED indicators for AC source, battery status, charging, error.
  • Auto-recharge for low voltage in maintenance mode.
  • OEM customizable & feld replaceable AC/DC cabling.
  • Additional portable handle available.
    • ENQUIRY!
    SKU: 27 Category:

    DC Output

    		 12VDC 24VDC 36VDC 48VDC
    Max. DC output voltage 16.8V 33.6V 50.4V 67.2V
    Max. DC output cuttent 25A 15A 10A 8A
    Max. DC output power 450W

    Deep discharge recovery (minimum voltage)

    		 8V 16V 24V 32V
    Max. C3 interlock current 7A
    Battery type Lead acid (wet / AGM / gel), lithium
    Reverse polarity Electronic protection with auto-reset
    Short circuit Electronic current limit

    AC Input
    AC input voltage range 85-270 VAC
    Nominal AC input voltage 100-240VAC ±10%
    Nominal AC input frequency 50 / 60Hz
    Maximum AC input current 6A
    Nominal AC input current 8A @ 100VAC 4A @ 240VAC
    Power factor >0.99 @ 120VAC >0.98 @ 230VAC

    Regulatory
    Effciency 88% at full load, 120 VAC, 48 VDC | 99% at full load, 240 VAC, 48 VDC
    Safety (LVD) UL1564, CSA 107.2, EN 60335-2-29
    Emissions (EMC) EN55014
    Immunity (EMC) EN 61000-3-2, EN 61000-3-3

    Mechanical

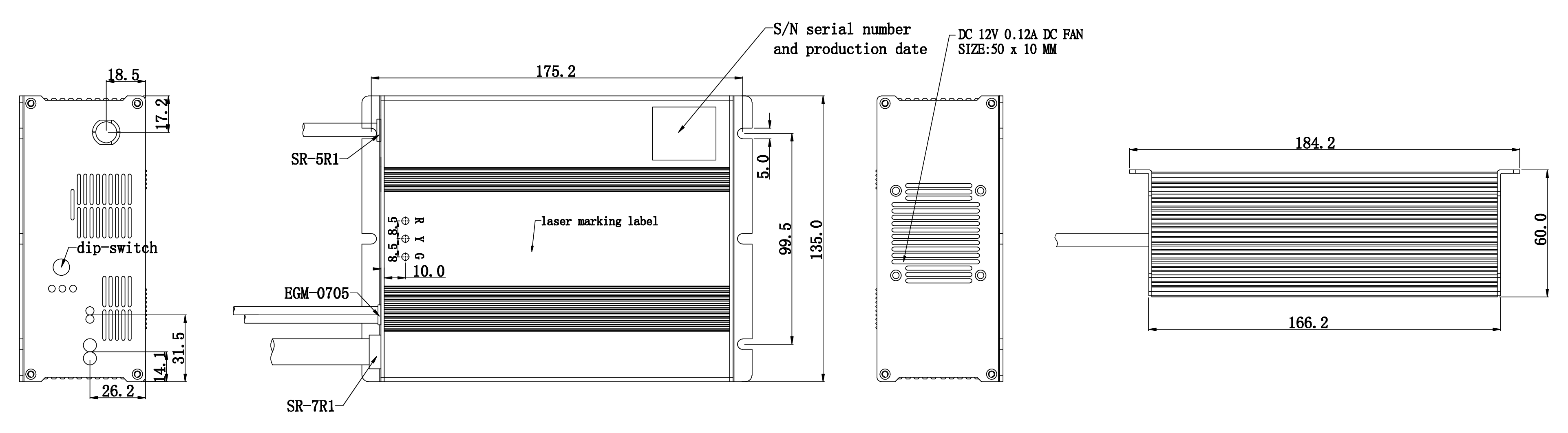

    Dimensions L184.2 x W135 x H60 mm
    Weight 1.8 kg
    AC input connector IEC320 / C14 (requires country-specifc cord)
    DC output connector Customizable
    Communication CAN bus 485 (optional)
    Inhibit function ON / OC
    Cooling

    Active cooling with fan

    (Variable speed)

    Environmental
    Enclosure IP21
    Operating temperature -20°C to +45°C Derated at >45°C
    Storage temperature -40°C to +70°C
