PRO 300W

The PRO 300 is a sealed series of high frequency battery charger with wide-range AC input adapting to any single-phase grid worldwide with a peak efficiency of 92%, complying with CEC. The charger can be programmed for charging various types of batteries.It is widely used for floor machines, pallet trucks, aerial work platforms,tow tractors, electric forklifts, electric wheelchairs, scooters and etc.

Highlighted Features:

  • User friendly LED indicators for AC source, battery status, charging, error.
  • Cooling convection cooling Auto-recharge for low voltage in maintenance mode.
  • OEM customizable & field replaceable AC / DC cabling.
  • Lithium Additional portable handle available.
    • ENQUIRY!
    SKU: 32 Category:

    DC Output

    		 12VDC 24VDC 36VDC 48VDC
    Max. DC output voltage 18V 36V 48V 62V
    Max. DC output cuttent 15A 10A 7A 5A
    Max. DC output power 300W
    Max. C3 interlock current 7A
    Battery type Lead acid (wet / AGM / gel), lithium
    Reverse polarity Electronic protection with auto-reset
    Short circuit Electronic current limit

    AC Input
    AC input voltage range 85-270 VAC
    Nominal AC input voltage 100-240VAC
    Nominal AC input frequency 50 / 60Hz
    Maximum AC input current 4A
    Nominal AC input current 3.4A @ 100VAC 2.8A @ 120VAC
    1.45A @ 230VAC 1.4A @ 240VAC
    Power factor >0.99 @ 120VAC >0.98 @ 230VAC

    Regulatory
    Effciency

    90% at full load, 120 VAC, 48 VDC | 92% at full load, 240 VAC, 48 VDC

    California Energy Commission (CEC) compliant
    Safety (LVD) UL1564, CSA 107.2, EN 60335-2-29
    Emissions (EMC) FCC Part 15 / ICES 003 Class A, EN55011, EN 61000-6-4
    Immunity (EMC) EN 61000-3-2, EN 61000-3-3, EN 61000-6-2

    Mechanical

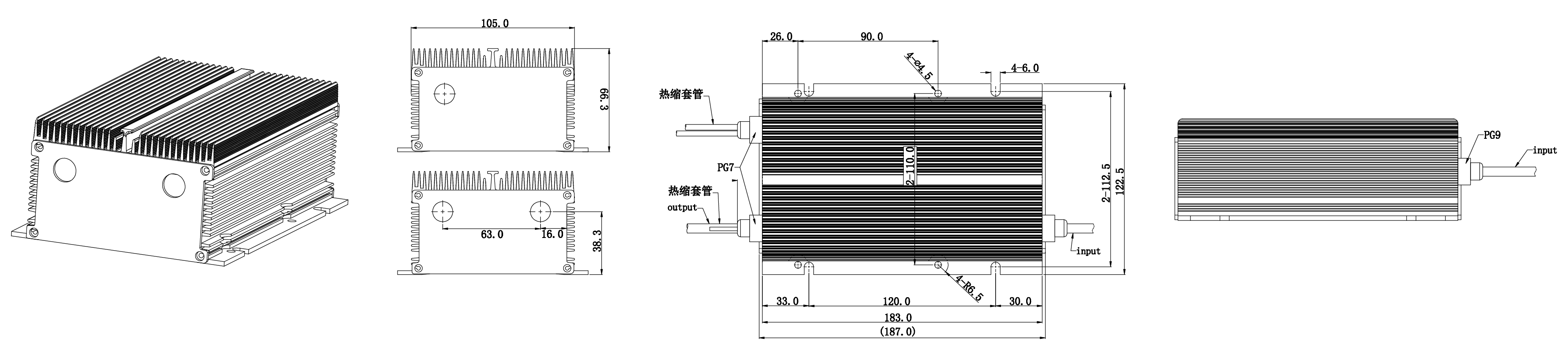

    Dimensions L187 x W122.5 x H66.3 mm
    Weight 1.6 kg
    AC input connector IEC320 / C14 (requires country-specifc cord)
    DC output connector Customizable
    Mounting holes 6.4mm (1/4”) diameter slots
    Cooling

    convection cooling

    Environmental
    Enclosure IP66 (NEMA4)
    Operating temperature -20°C to +65°C Derated at >40°C
    Storage temperature -40°C to +85°C
