| DC Output | 24VDC | 36VDC | 48VDC |
| Max. DC output voltage | 33V | 49.5V | 66V |
| Max. DC output cuttent | 15A | 10A | 7A |
| Max. DC output power | 450W | ||
| Deep discharge recovery
(minimum voltage) |
16V | 24V | 32V |
| Max. C3 interlock current | 7A | ||
| Battery type | Lead acid (wet / AGM / gel), lithium | ||
| Reverse polarity | Electronic protection with auto-reset | ||
| Short circuit | Electronic current limit | ||
| AC Input | |
| AC input voltage range | 220 VAC |
| Nominal AC input voltage | 220 VAC |
| Nominal AC input frequency | 50 / 60Hz |
| Maximum AC input current | 2.5A (MAX) |
| Power factor | >0.98 @ 230VAC |
| Regulatory | |
| Effciency | 92% at full load, 240 VAC, 48 VDC |
| Mechanical | |

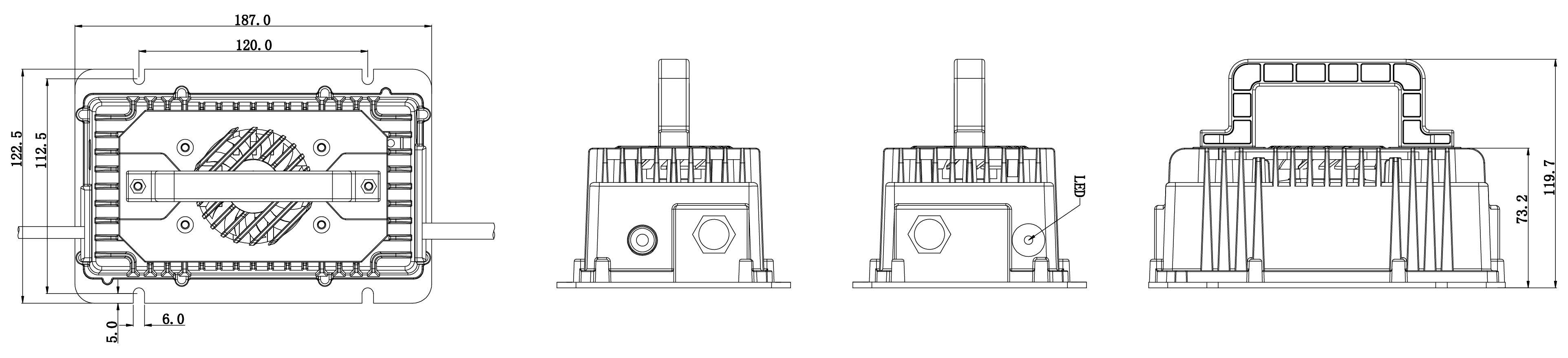

| Dimensions | L187 x W122.5 x H72.4 mm |
| Weight | 2.5 kg |
| AC input connector | IEC320 / C14 (requires country-specifc cord) |
| DC output connector | M6 threaded fasteners for ring terminals (field replaceable) |
| Mounting holes | 6mm (1/4”) diameter slots |
| Cooling | Convection cooling |
| Environmental | ||
| Enclosure | IP66 | |
| Mechanical shock & vibration | GMW3172 | |
| Corrosion & humidity | ||
| Thermal fatigue | ||
| Operating temperature | -20°C to +40°C | Derated at >40°C |
| Storage temperature | -20°C to +60°C | |
