| Models Available | |||||||
| Lead acid (Ah) | Gel (Ah) | Iac | |||||
| V |
A | VAC | CODE | 7-8h | 10-11-14h | 12-14h | Current draw |
| 24 | 20 | 1X230 | N600 24/ 20 | 120-140 | 170-190-230 | 152-190 | 2.72 |
| 36 | 14 | 1X230 | N600 36/14 | 84-98 | 120-134-162 | 106-134 | 2.72 |
| 48 | 10 | 1X230 | N300 48/10 | 60-70 | 86-96-116 | 76-96 | 2.72 |
| General Characteristics | |
| Mains | Vac 230V + / -10% 50-60Hz |
| Visual signalling | Single LED (Bi-colored) |
| Charger setting | By switches: 1 charging profiles (Pb / Gel preset) |
| Cool-down system | Temperature-regulated fan speed Fan idle within 40°C internal components temperature |
| Efficiency | >87% |
| Operating temperature | 0°C to +40°C |
| Storage temperature | 0°C to +60°C |
| Safety Features | |
| Input protection | Fast AC fuse |
| Output protection | By relay (reverse polarity protection) |
| Thermal Protection | Forced derating or safety cut off on the diodes |
| Protection during battery disconnection |
Safety cut off by undervoltage |
| Regulatory | |
| On board | Inhibit cable (Vac presence relay), Remote LED |
| Stand alone / wall mounted | Cable holder |
| On board / stand alone / wall | Additional extra coating |
| Mechanical Characteristics | |

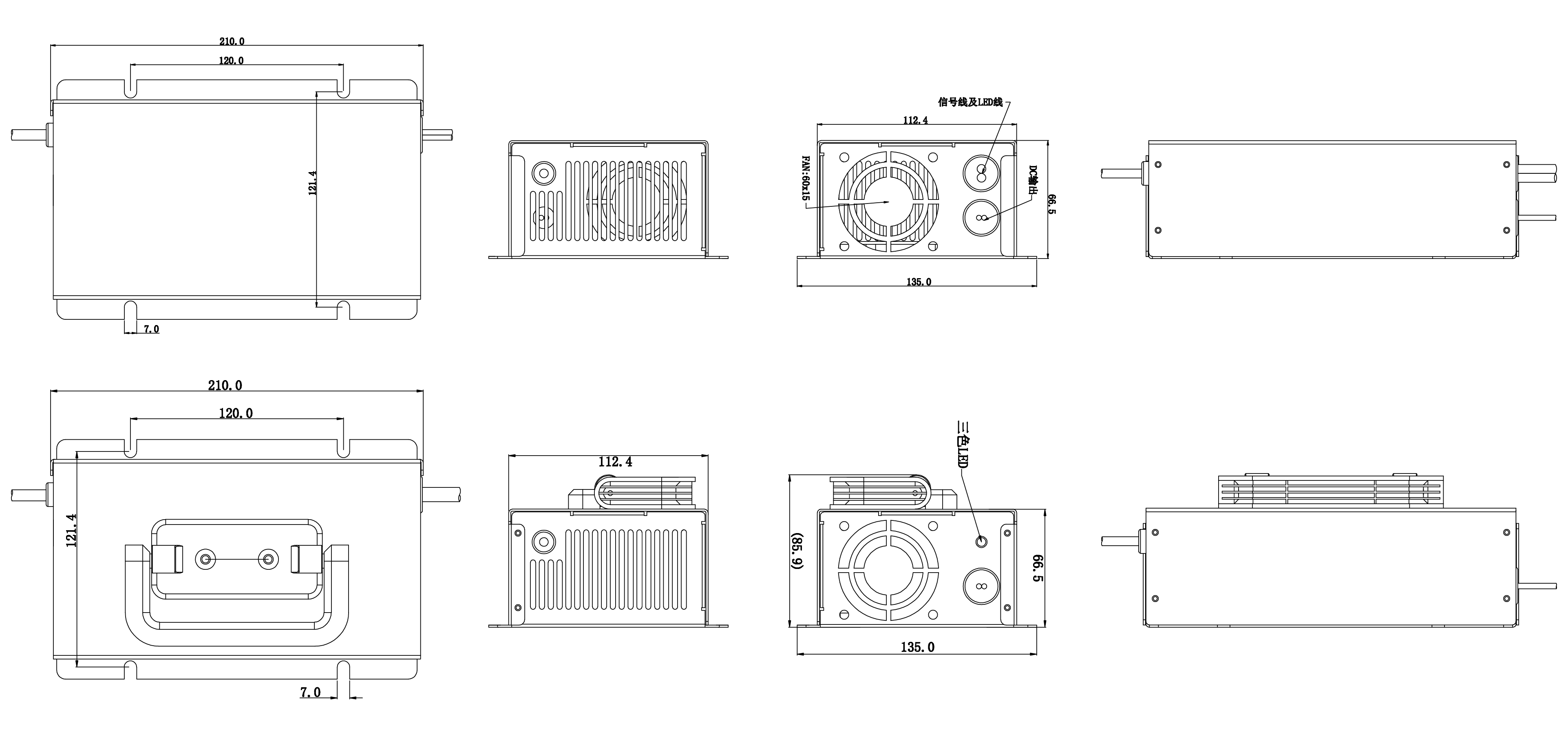

| Dimensions | L210 x W135 x H66.5 mm |
| Protection degree | IP 20 (vertical) |
| Weight | 2.5 kg |
| Input cable | 1.8 m (length) complete with CN plug 16A |
| Output cables | 1.2m + / – 10% (length) – DC plug on demand |
