Mission 720W

Mission 720W

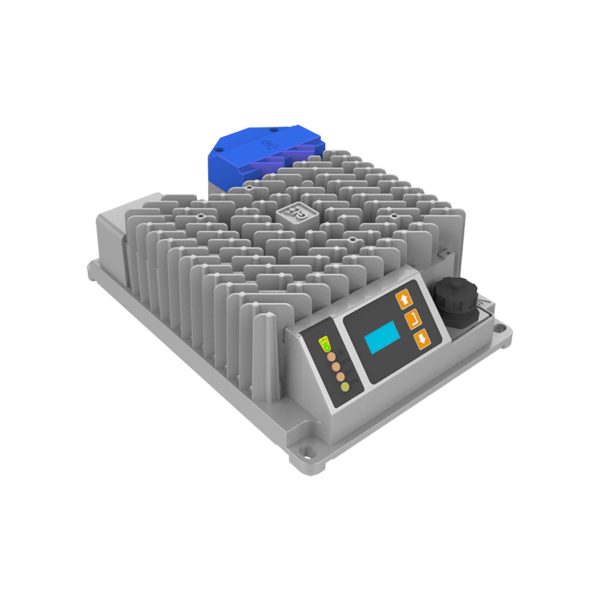

The Mission 720 charger is designed highly intelligent aiming for the applications of aerial work platforms, lift trucks, floor care machines, utility vehicles, mobilities, and motorcycles, etc., capable of charging lead acid (wet, AGM, gel) as well as lithium-ion batteries. Fully sealed with IP66 enclosures with high efficient cooling fins on top, some are with an external water resistant fan, data access, transmit and configuration are possible via U disk, CAN / CAN open is possible via CAN port. Other communications such as I2C, RS485, UART are possible via serial port. High frequency, high efficiency of up to 94% complying CEC, wide-range universal AC input.

Highlighted Features:

  • Optional CAN bus, RS485, I2C, Wi-Fi, Bluetooth communication for machine integration or lithiumBMS.
  • User friendly LED indicators for AC source, batterystatus, charging, error.
  • Field programmable with up to 30 charge profiles.
  • Auto-recharge for low voltage in maintenance mode.
  • OEM customizable & field replaceable AC / DC cabling.
  • Additional portable handle available.
    • ENQUIRY!
    SKU: 51 Category:

    DC Output

    		 24VDC 36VDC 48VDC
    Max. DC output voltage 36V 54V 72V
    Max. DC output cuttent 15A 10A 8A
    Max. DC output power 720W

    Deep discharge recovery

    (minimum voltage)

    		 1.2V 1.8V 2.4V
    Max. C3 interlock current 10A 2A 0.5A
    Battery type Lead acid (wet / AGM / gel), lithium
    Reverse polarity Electronic protection with auto-reset
    Short circuit Electronic current limit

    AC Input
    AC input voltage range 85-270 VAC
    Nominal AC input voltage 100-240VAC
    Nominal AC input frequency 50 / 60Hz
    Maximum AC input current 10A
    Nominal AC input current 8A @ 100VAC 3.3A @ 240VAC
    Power factor >0.99 @ 120VAC >0.98 @ 230VAC

    Regulatory
    Effciency

    90% at full load, 120 VAC, 48 VDC | 92% at full load, 240 VAC, 48 VDC

    California Energy Commission (CEC) compliant
    Safety (LVD) UL1564, CSA 107.2, EN 60335-2-29
    Emissions (EMC) FCC Part 15 / ICES 003 Class A, EN55011, EN 61000-6-4
    Immunity (EMC) EN 61000-3-2, EN 61000-3-3, EN 61000-6-2

    Mechanical
    Dimensions L250 x W180 x H80 mm
    Weight 2.5 kg
    AC input connector IEC320 / C14
    DC output connector M5 threaded fasteners for ring terminals
    Service port Sealed (IP66) USB 2.0 Host Port (Type A) with dust cover
    Mounting holes 6.4mm (1/4”) diameter slots
    Cooling

    convection cooling

    Environmental
    Enclosure IP66 (NEMA4)
    Operating temperature -40°C to +65°C Derated at >40°C
    Storage temperature -40°C to +85°C
