DC Output |
24VDC | 36VDC | 48VDC |
| Max. DC output voltage | 36V | 54V | 72V |
| Max. DC output cuttent | 50A | 40A | 25A |
| Max. DC output power | 2000W | ||
|
Deep discharge recovery (minimum voltage) |
16V | 24V | 32V |
| Max. C3 interlock current | 7A | ||
| Battery type | Lead acid (wet / AGM / gel), lithium | ||
| Reverse polarity | Electronic protection with auto-reset | ||
| Short circuit | Electronic current limit | ||
| AC Input | ||
| AC input voltage range | 85-270 VAC | |
| Nominal AC input voltage | 100-240VAC ±10% | |
| Nominal AC input frequency | 50 / 60Hz | |
| Maximum AC input current | 13A | |
| Nominal AC input current | 13A @ 100VAC | 10A @ 240VAC |
| Power factor | >0.99 @ 120VAC | >0.98 @ 230VAC |
| Regulatory | |
| Effciency |
90% at full load, 120 VAC, 48 VDC | 92% at full load, 240 VAC, 48 VDC California Energy Commission (CEC) compliant |
| Safety (LVD) | UL1564, CSA 107.2, EN 60335-2-29 |
| Emissions (EMC) | FCC Part 15 / ICES 003 Class A, EN55014-1, EN 61000-3-2 |
| Immunity (EMC) | EN 6100014-2, EN 61000-4-11, EN 61000-6-2 |
| Mechanical | |

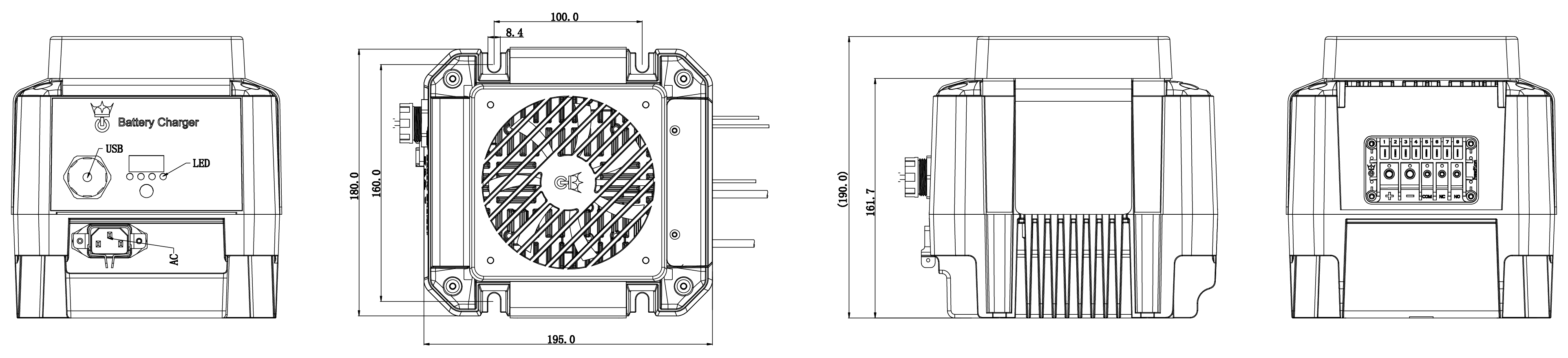

| Dimensions | L195 x W180 x H190 mm |
| Weight | 5.2 kg |
| AC input connector | IEC320 / C14 (requires country-specifc cord) |
| DC output connector | M6 threaded fasteners for ring terminals (field replaceable) |
| Service port | Sealed (IP66) USB 2.0 Host Port (Type A) with dust cover |
| Mounting holes | 8.4mm (1/3”) diameter slots |

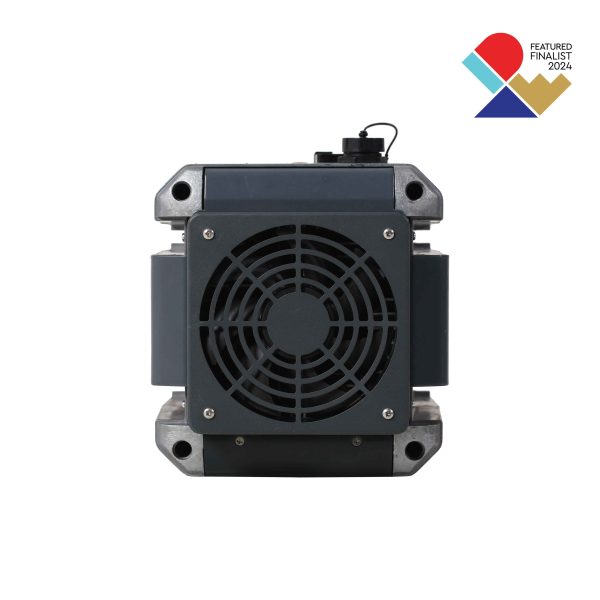

| Cooling |
Active cooling with fan (Variable speed, feld serviceable, field replaceable) |
| Environmental | ||
| Enclosure | IP66 (NEMA4) | |
| Mechanical shock & vibration | GMW3172 | |
| Corrosion & humidity | ||
| Thermal fatigue | ||
| Operating temperature | -20°C to +40°C | Derated at >40°C |
| Storage temperature | -40°C to +85°C | |
