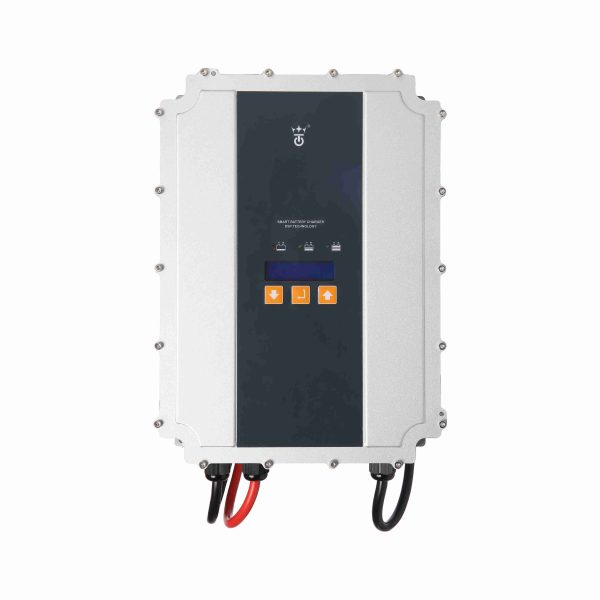

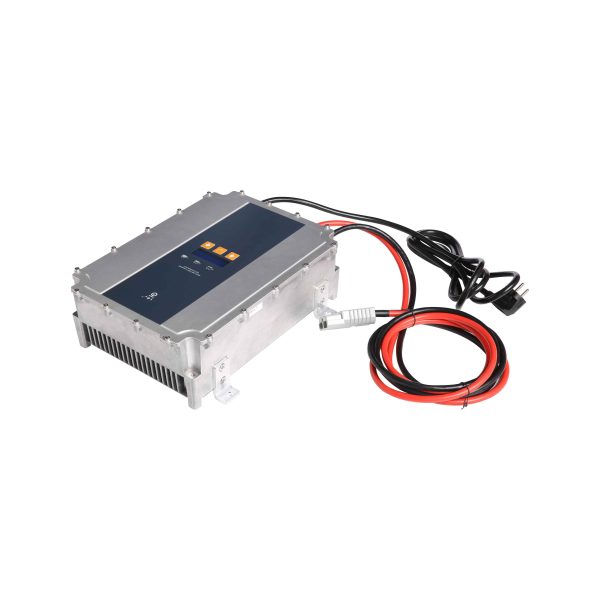

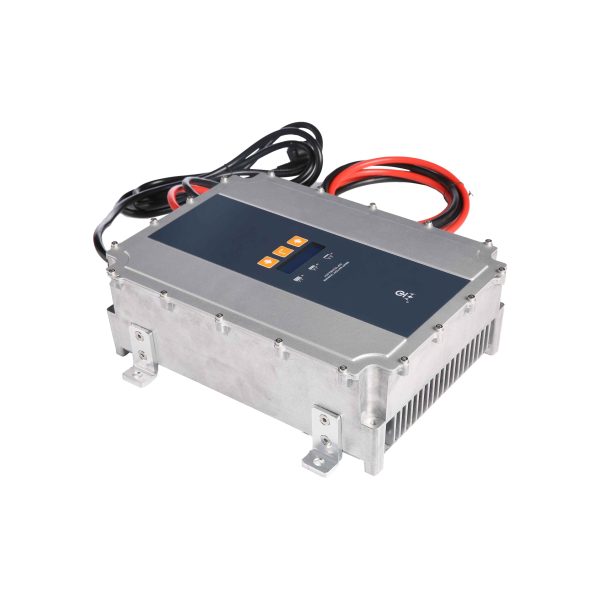

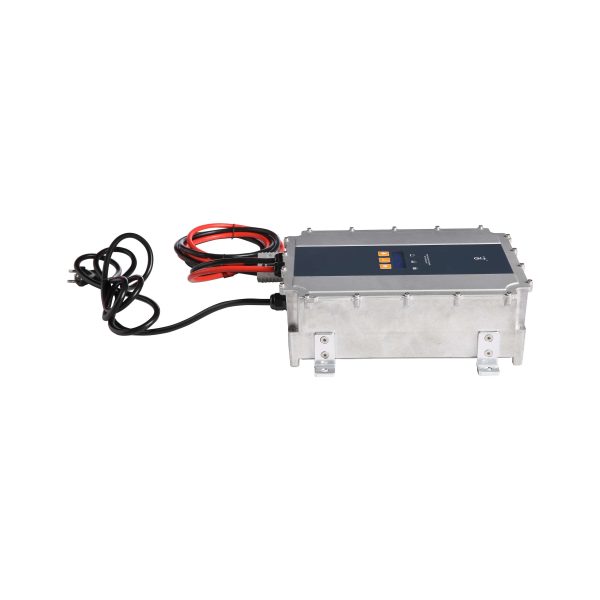

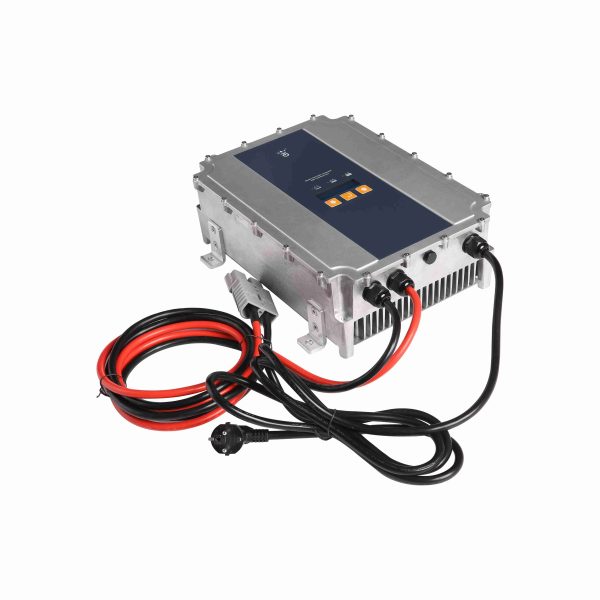

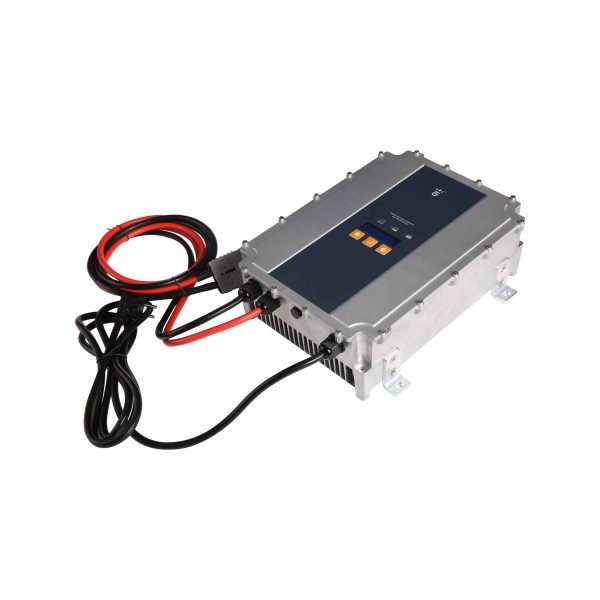

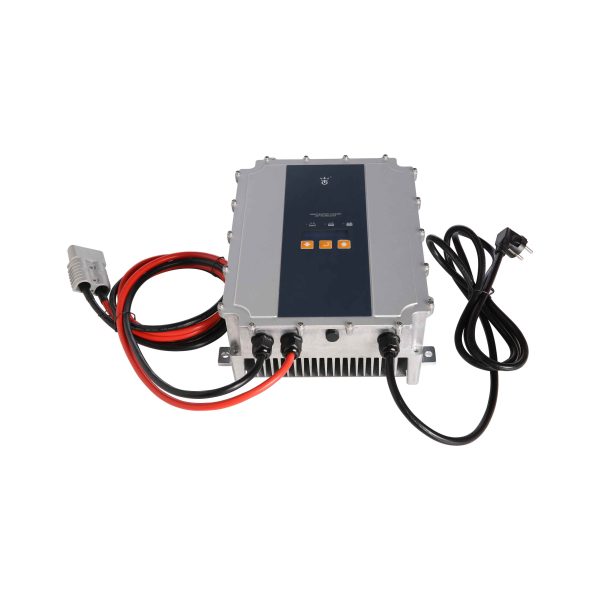

DSP 3600W Intelligent design for charging AGM, GEL, WET and Lithium batteries

Intelligent design for charging AGM, GEL, WET and Lithium batteries, the DSP 3600 Charger isavailable in on- and off-board configurations and AC/DC cabling is completely customizable.



Highlighted Features:

  • Optional CAN bus, RS485, I2C, Wi-Fi, Bluetooth communication for machine integration or lithium BMS.
  • User friendly LED indicators for AC source, battery status, charging, error.
  • Field programmable with up to 16 charging profiles.
  • Auto-recharge for low voltage in maintenance mode.
  • OEM customizable & field replaceable AC / DC cabling.
ENQUIRY!
SKU: 75 Category:



DC Output 24VDC 36VDC 48VDC
Max. DC output voltage 33V 49.5V 66V
Max. DC output cuttent 120A 80A 60A
Max. DC output power 3600W
Deep discharge recovery

(minimum voltage)

 16V 24V 32V
Max. C3 interlock current 7A
Battery type Lead acid (wet / AGM / gel), lithium
Reverse polarity Electronic protection with auto-reset
Short circuit Electronic current limit



AC Input
AC input voltage range 85-270 VAC
Nominal AC input voltage 100-240VAC
Nominal AC input frequency 50 / 60Hz
Maximum AC input current 16A
Nominal AC input current 16A @ 100VAC 16A @ 120VAC
16A @ 230VAC 16A @ 240VAC
Power factor >0.99 @ 120VAC >0.98 @ 230VAC



Regulatory
Effciency 90% at full load, 120 VAC, 48 VDC | 92% at full load, 240 VAC, 48 VDC
Safety (LVD) UL1564, CSA 107.2, EN 60335-2-29
Emissions (EMC) FCC Part 15 / ICES 003 Class A, EN55011, EN 61000-6-4
Immunity (EMC) EN 61000-3-2, EN 61000-3-3, EN 61000-6-2



Mechanical

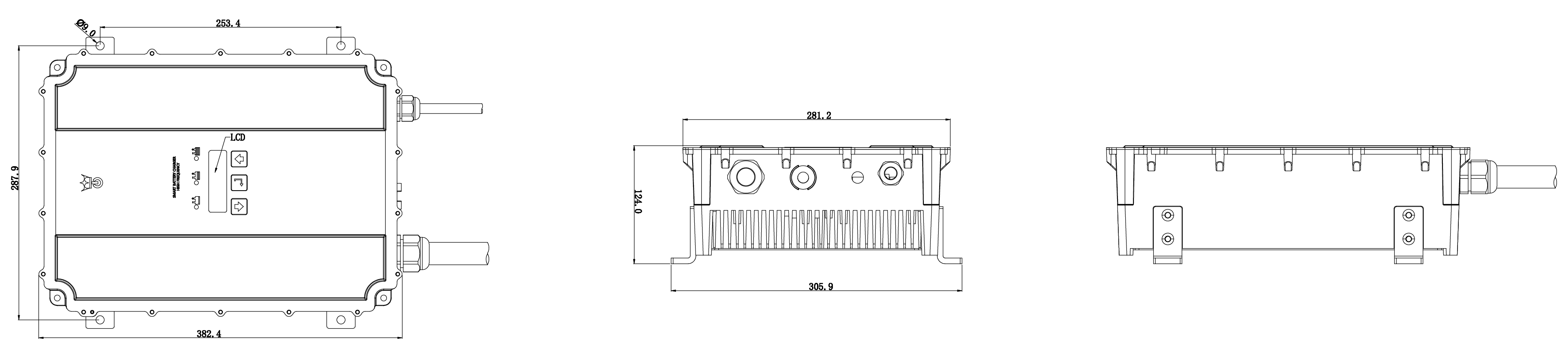

Dimensions L382.4 x W305.9 x H124 mm
Weight 10 kg
AC input connector IEC320 / C14 (requires country-specifc cord)
DC output connector M6 threaded fasteners for ring terminals (field replaceable)
Mounting holes 10mm (1/4”) diameter slots

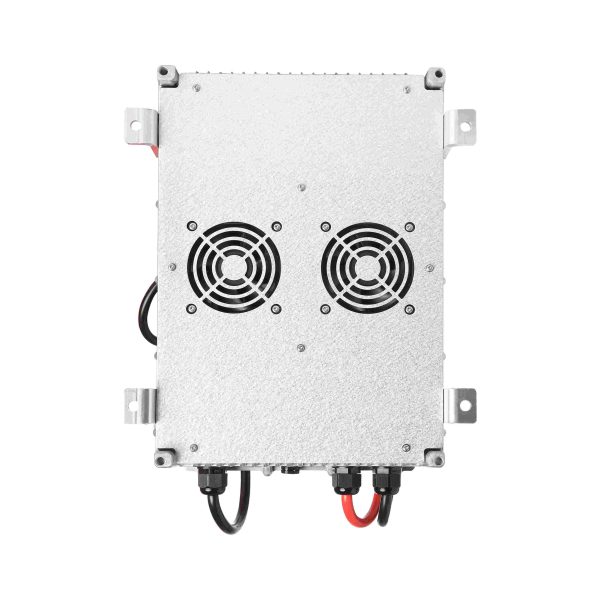

Cooling Active cooling with fan

(Variable speed, feld serviceable, field replaceable)



Environmental
Enclosure IP66
Mechanical shock & vibration GMW3172
Corrosion & humidity
Thermal fatigue
Operating temperature -10°C to +40°C Derated at >40°C
Storage temperature -20°C to +60°C
