| Output Voltage (support customized algorithm) | |||
| Fast Charge (AGM) | DC 29.6V (+ / – 0.2V) | Fast Charge (GEL) | DC 28.6V (+ / – 0.2V) |
| Float Charge (AGM) | DC 27.4V (+ / – 0.2V) | Float Charge (GEL) | DC 26.6V (+ / – 0.2V) |
| Charging Current | |||
| Fast Charge | DC 3.5 mA + / – 10% | Float Charge | < DC 500 mA + / – 10% |
| Input Voltage | 100 – 240 Vac + / -10% | Input Frequency | 50 – 60 Hz |
| Over Voltage Protection | DC 31V Max. | Over Current Protection | DC 4.5A Max. |
| Leakage Current | 0.75mA Max. | Input Power | 130W |
| Input Standby Power | <1W | Effciency | > 85% @ Full Load |

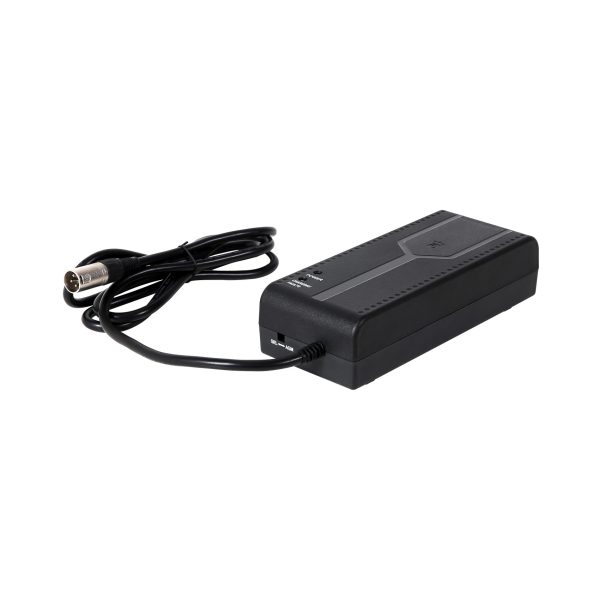

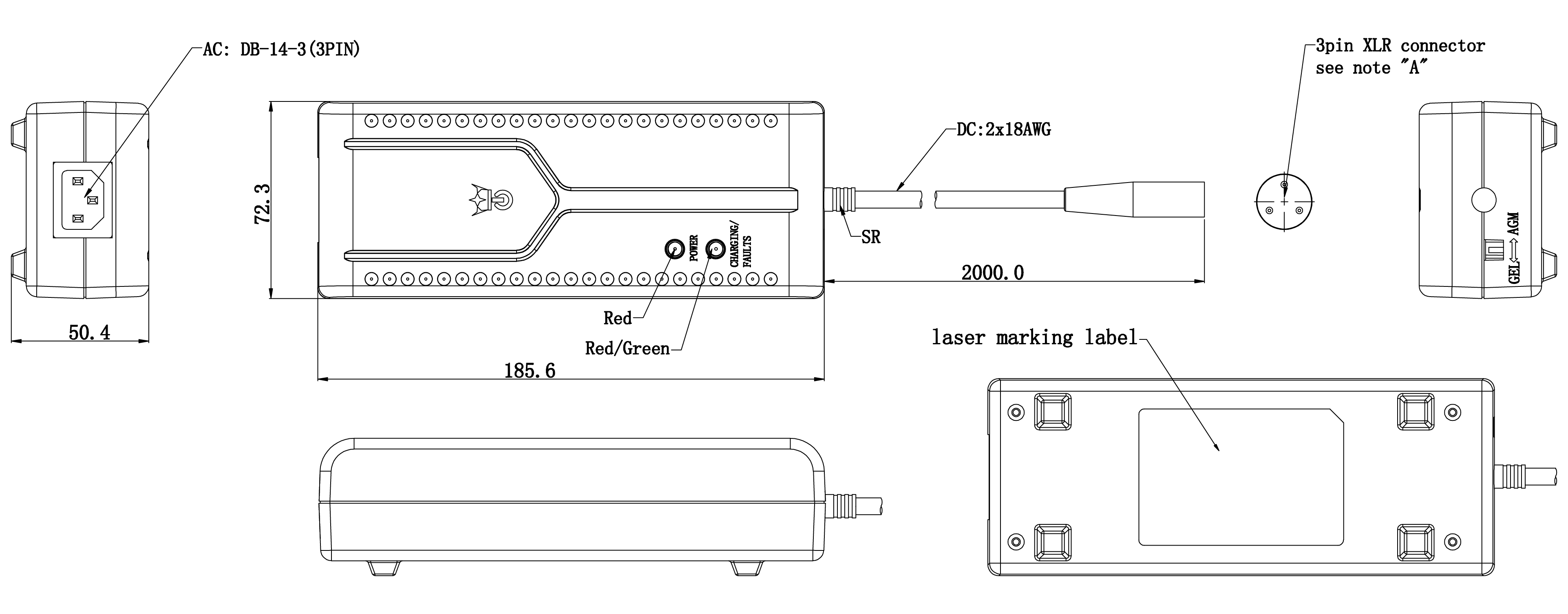

| Battery Charging Capacity | 12 – 35 Amp Hours | Output Cord | 2m long, SJT type (Hard Usage) with XLR 3-pin Male Connector |
| Dielectric Withstand Voltage | AC 3.0KV for 1 min. @ 10mA leakage | Insulation Resistance | 50Mohm Min. at 500Vdc between Primary and Secondary |
| Operation Temperature | 0°C to +40°C | Storage Temperature | -25°C to +60°C |
| Safety Standards | IEC / EN 60335-2-29, IEC / EN 60335-1, BS EN 60335-2-29, UL 1012, CSA C22.2#107.2, EN 55014-1, EN 55014-2, IEC / EN 61000-3-2, IEC / EN 61000-3-3, AS / NZS CISPR 14.1-2013, ISO 7176-21, ISO 7176-25, ISO7176-14, ISO 7176-15, DOE 10 CFR 430.32 (z), CEC-140-2019-002 | ||

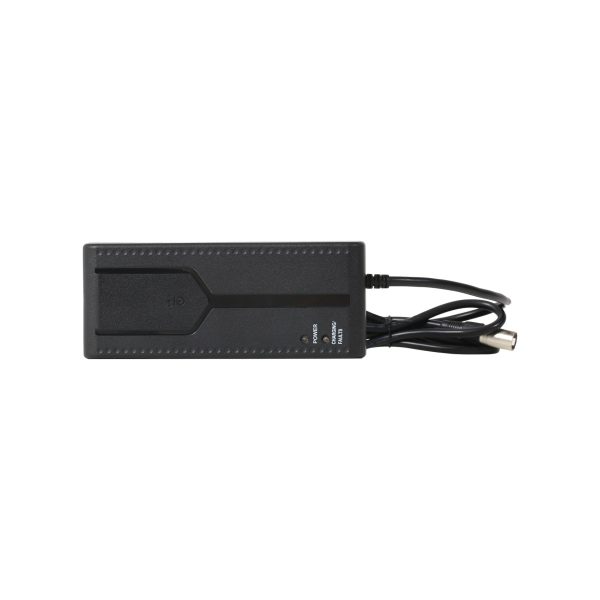

| 2 LEDs for Status Indication | ||
| 1. Power LED (Clear Lens – Red Color) | ||
| Description | LED | |
| Power On | On | |
| No AC Power | Off | |
| 2. Charging / Faults – LED (Clear Lens – Red / Green Color) | ||
| Charging – Description | Red LED | Green LED |
| No Battery / Full Charge (20 Hrs) | Off | Off |
| Bulk /Absorption Charge | On | Off |
| Float Charge | Off | Continuous Blinking |
| Maintenance Charge | Off | On Steady |
| INDICATION CHARGE / FAULT – Red LED | FAULT |
| LED is off | No batteries – Voltage < 9V |
| LED – continuous rapid flashing | 12 hr. charge timed out |
| LED – 1 flashes every 3 sec | Battery voltage < 14V |
| LED – 2 flashes every 3 sec | Batteries are connected in reverse polarity |
| LED – 3 flashes every 3 sec | Over voltage from batteries |
| LED – 4 flashes every 3 sec | Over current from charger |
