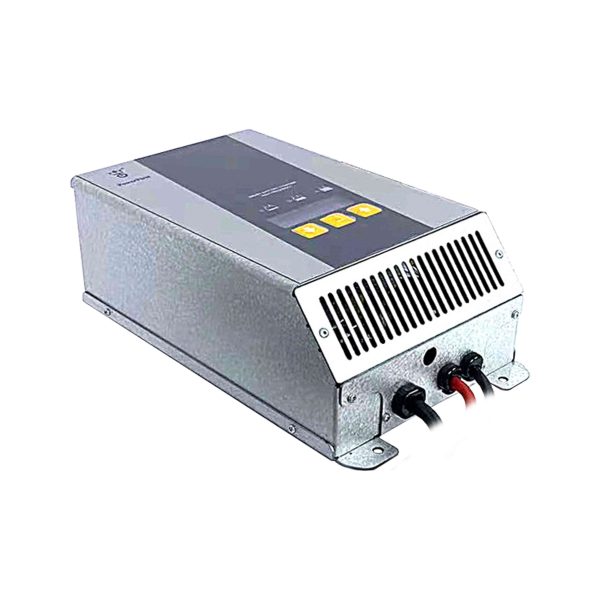

Glory 1200W

Glory 1200W

The Glory 1200 serie of fan-cooled high frequency battery chargers feature wide-range AC input adapting to any single-phase grid worldwide with a peak efficiency of 92%, complying with CEC, with I2C interface function to set output currents and charging profiles for various types of battery packs, widely used for floor machines, small pallet movers, small utility vehicles, small tugs, caddies, etc.



Highlighted Features:

  • Optional CAN bus, RS485, I2C, Wi-Fi, Bluetooth communication for machine integration or lithiumBMS.
  • User friendly LED indicators for AC source, batterystatus, charging, error.
  • Field programmable with up to 30 charge profiles.
  • Auto-recharge for low voltage in maintenance mode.
  • OEM customizable & field replaceable AC / DC cabling.
  • Additional portable handle available.
ENQUIRY!
SKU: 66 Category:



DC Output 24VDC 36VDC 48VDC
Max. DC output voltage 36V 54V 72V
Max. DC output cuttent 40A 30A 20A
Max. DC output power 1200W
Deep discharge recovery

(minimum voltage)

 16V 24V 32V
Max. C3 interlock current 7A
Battery type Lead acid (wet / AGM / gel), lithium
Reverse polarity Electronic protection with auto-reset
Short circuit Electronic current limit

AC Input
AC input voltage range 85-270 VAC
Nominal AC input voltage 100-240VAC
Nominal AC input frequency 50 / 60Hz
Maximum AC input current 12A
Nominal AC input current 12A @ 100VAC 6A @ 120VAC
Power factor >0.99 @ 120VAC >0.98 @ 230VAC



Regulatory
Effciency 90% at full load, 120 VAC, 48 VDC | 92% at full load, 240 VAC, 48 VDC
Safety (LVD) UL1564, CSA 107.2, EN 60335-2-29
Emissions (EMC) EN 61000-6-4, EN55014
Immunity (EMC) EN 61000-3-2, EN 61000-3-3, EN 61000-6-2



Mechanical
Dimensions L307 x W175 x H100 mm
Weight 5 kg
AC input connector IEC320 / C14 (requires country-specifc cord)
DC output connector Anderson SB 50 connector, customizable
Service port CAN or RS 485 communication
Mounting holes 6mm (1/4”) diameter slots
Cooling Active cooling with fan

Environmental
Enclosure IP21
Operating temperature -10°C to +45°C Derated at >40°C
Storage temperature -40°C to +85°C
